Blood Cell Counting Plate Characteristic
1 RBC Pipette
1 WBC Pipette
2 Blood Cover Slips
Description
Technical Parameters
Description:

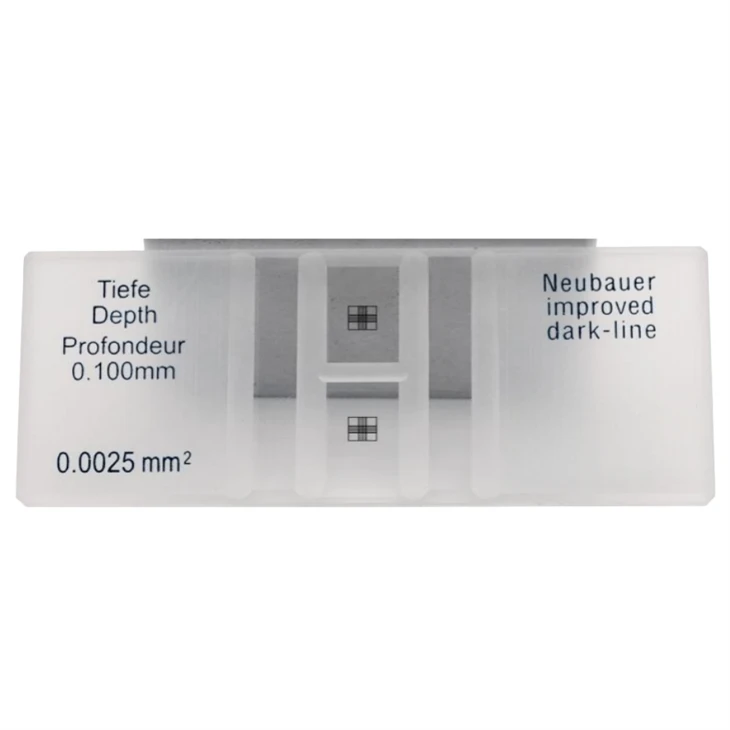

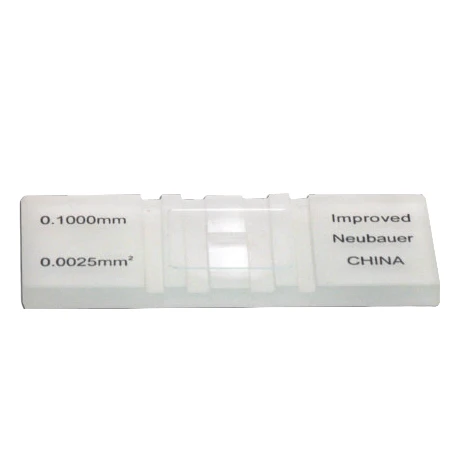

The hemocytometer is made of a specially designed glass slide that is thicker than an ordinary cover slip. It measures 7.4 x 3.3 cm. The slide has four grooves that form three platforms. The middle platform is wider and is divided into two halves by a short transverse groove. Each half has a grid engraved on it.
The grid is composed of nine large squares, but only the middle one is the counting chamber used for counting microorganisms. This large square is 2 mm in length and width, and 0.1 mm in depth, with a volume of 0.1 x 2 x 2 mm
● Made of Glass
● Double ruling and all group squares with triple boundary lines for counting
● Formula: Particles per μl volume = Counted particles/(Counted surface×chamber depth×Dilution)
Specifications
Advantage:Clear scale lines, good visibility, fine workmanship,
good transparency, accurate data, H-shaped groove
Advantage:Metal silver bottom,clear scale line,good visibility,fine workmanship,good transparency,precise data, H-shaped notch,surface specially processed and polished.
Advantage:Clear and easy to read,accurate counting,ease eye fatigue,dark side counting board separate line is still clear even after repeated rinsing,long-term durability and accuracy
OEM & Customization
As a professional China factory manufacturer, we support flexible OEM services for distributors and lab supply companies:
Custom labels (OEM printing)
Custom packaging style(individual box / bulk pack)
Custom carton quantity
Custom weight / size options
Support pallet shipping & extra carton purchase
Ideal for laboratory distributors, reagent suppliers, and educational institutions.
Our Certificate
Company Partner
Quality Checking Process
Production Process
FAQ
Q: Which grid type do you supply?
A: We offer Improved Neubauer, Standard Neubauer, and customized grid designs.
Q: Do you provide OEM packaging and labeling?
A: Yes, full customization is available based on your brand requirements.
Q: Are these counting plates suitable for clinical laboratory use?
A: Yes, they are suitable for hospitals, clinical labs, research institutes, and teaching labs.
Q: What is the delivery time?
A: Standard production time is 7–10 days after the 30% deposit.
Q: Can I mix different models in one order?
A: Yes, mixed models can be shipped together
